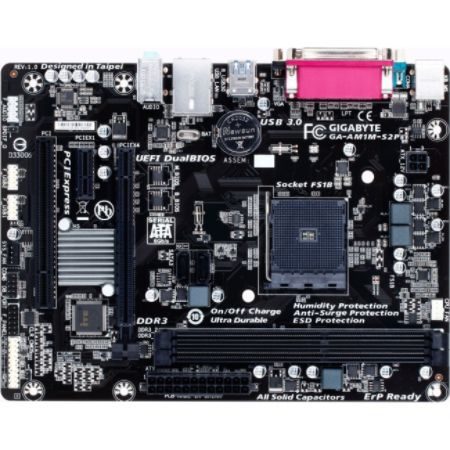

Gigabyte Ultra Durable 4 Plus GA-AM1M-S2P Desktop Motherboard - AMD Chipset - Socket AM1 Item # 642274
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
642274
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Gigabyte AM1 motherboard supports high graphics efficiency of AM1 Athlon/Sempron-series APU, and also features the specifications of native PCI Express generation 2.0, SATA 6 Gbps, USB 3.0, etc. Not only delivering AMD's industry-leading performance and advanced graphics capabilities, Gigabyte ultra durable motherboard is equipped with a comprehensive range of high quality components and unique features that offer mainstream PC users the most compelling platform on the market today.
Product Details
| Item # | 642274 |
| Manufacturer # | VR9270 |
| Number of SATA Interfaces | 2 |
| Number of PS/2 Ports | 2 |
| Hardware Features | DualBIOS, Q-Flash, All-Solid Capacitor motherboard Design, Intel Extreme Memory Profile (XMP) support, On/Off Charge, One Port One Fuse, ESD Protection, Ultra Durable 4 Plus, Timing Configurator, Clear CMOS Button |
| Power Supply Supported | ATX12V |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz |
| Certifications & Standards | ACPI 5.0; CE; FCC; BSMI |
| Compatible Processors | Athlon, Sempron |
| Number of Network (RJ-45) Ports | 1 |
| Number of DVI Outputs | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 1 x audio - header ¦ 1 x SPDIF out - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header |
| Graphics Controller Manufacturer | AMD |
| Product Line | Ultra Durable 4 Plus |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 device(s) |
| Number of PCI Express x16 Slots | 1 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 2 |
| Graphics Memory Accessibility | Shared |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz |
| VGA | Yes |
| Max Processors Qty | 1 |
| brand name | Gigabyte |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
| Audio Channels | 7.1 |
| Number of USB 2.0 Ports | 2 |
| PS/2 Port | Yes |
| DVI | Yes |
| Memory Form Factor | DIMM |
| Parallel Port | Yes |
| Processor Socket | Socket AM1 |
| Sound Controller Manufacturer | Realtek |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| Number of PCI Slots | 1 |
| Total Number of Onboard USB Ports | 4 |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| HDMI | Yes |
| Processor Supported | Athlon; Sempron |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Total Number of USB Ports | 4 |
| Serial Port | Yes |
| Number of PCI Express x1 Slots | 1 |
| Onboard Audio Header | Yes |
| width | 8.9 in |
| package contents | Ultra Durable 4 Plus GA-AM1M-S2P (rev. 1.0) Desktop Motherboard; Bundle Software |
| Number of Memory Slots | 2 |
| Sound Controller Model | ALC887 |
| depth | 6.7 in |
| Product Name | Ultra Durable 4 Plus GA-AM1M-S2P (rev. 1.0) Desktop Motherboard |
| Audio Codec | Realtek ALC887 |
| manufacturer | GIGABYTE Technology, Inc |
| Audio Line Out | Yes |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| controller type | Serial ATA/600 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Graphics Memory Technology | DDR3 SDRAM |
| Number of Total Expansion Slots | 3 |
| Chipset Manufacturer | AMD |
| Graphics Controller Memory | 2 GB |
| Memory Technology | DDR3 SDRAM |
| form factor | Micro ATX |
| Number of HDMI Outputs | 1 |
| Onboard S/PDIF Header | Yes |
| model name | GA-AM1M-S2P |
| Show More ▾ |
